Products

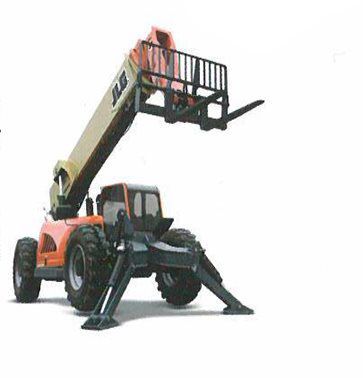

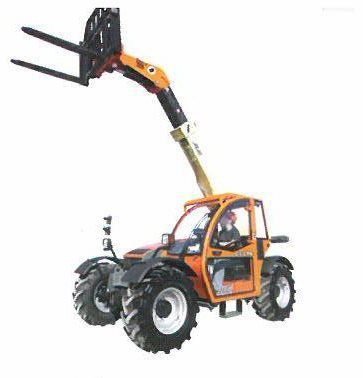

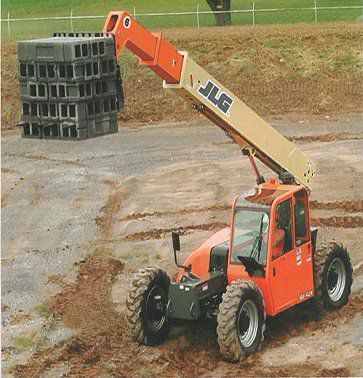

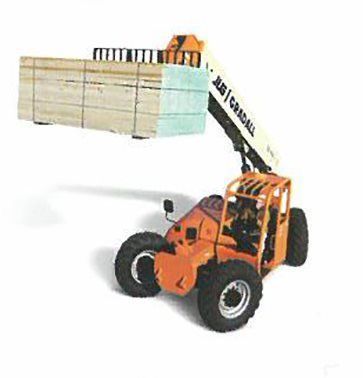

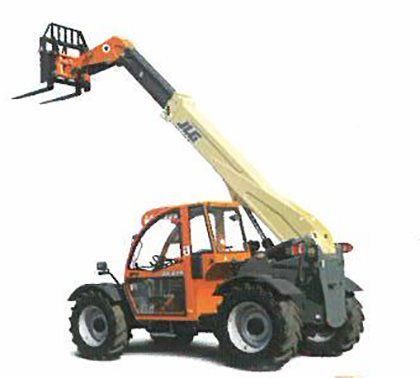

JLG

POWER, VERSATILITY AND INNOVATION

It's what you expect from a world-leading equipment manufacturer. And what you get with the new family of JLG all-wheel-steer telehandlers. Building on the JLG tradition of engineering expertise and technological innovation, JLG telehandlers are equipped to meet more of your job site challenges. Higher capacities and extended reach heights give you the power to do more.

Model G5-19A

Max Reach: 10 ft. 4 in. (3.15 m)

Max Lift: 19 ft. (5.79 m)

Max Capacity: 5.000 lb. (2,268 kg)

Model G6-23A

Max Reach: 12 ft. 9 in. (3.89 m)

Max Lift: 22 ft. 7 in. (6.88 m)

Max Capacity: 6,600 lb. (2,994 kg)

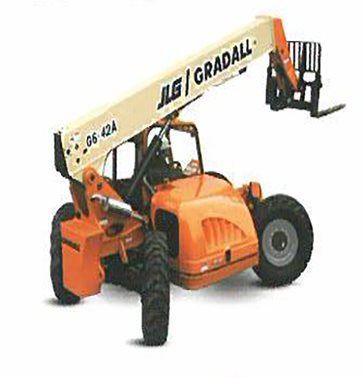

Model G6-42A

Max Reach: 29 ft. (8.84 m)

Max Lift: 42 ft. (12.8 m)

Max Capacity: 6,600 lb. (2,994 kg)

Model G9-43A

Max Reach: 30 ft. 6 in. (3.15 m)

Max Lift: 43 ft. (13.11 m)

Max Capacity: 9,000 lb. (4,082 kg)

Model G10-55A

Max Reach: 42 ft. (12.8 n)

Max Lift: 55 ft. (16.76 m)

Max Capacity: 10,000 lb. (4,536 kg)

Gradall

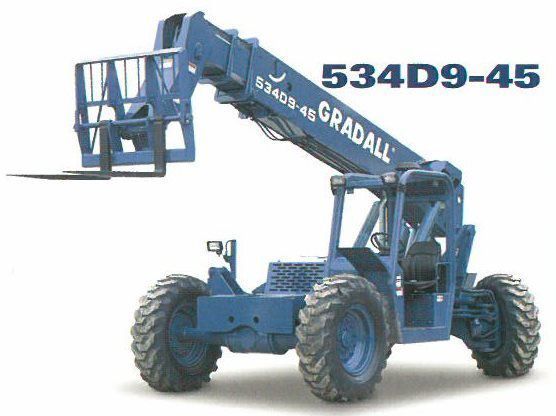

534D9-45

Rated Capacity

At 24" (610mm) load center, 9,000 lb. (4,082 kg)

Maximum Lift Height

45' (13.7m)

Frame Leveling

8 degrees

Lift Speed (boom retracted)

Empty 105 f.p.m. (32 m/min)

Loaded 97 f.p.m. (29.5 m/min)

Boom Speed

Extend 100 f.p.m. (30.5 m/min)

Retract 105 f.p.m. (32 m/min)

Travel Speeds (Fwd and Rev)

2WD 0-18 mph (29 km/hr)

4WD 0-6 mph (9.7 km/hr)

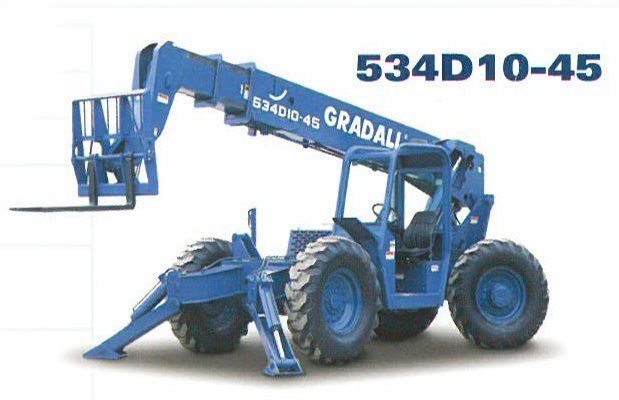

534D10-45

 Rated Capacity

 At 24" (610mm) load center, 10,000 lb. (4,536 kg)

 Maximum Lift Height

 45' (13.7m)

 Frame Leveling

 8 degrees

 Lift Speed (boom retracted)

Empty 105 f.p.m. (32 m/min)

Loaded 95 f.p.m. (29 m/min)

 Boom Speed

Extend 100 f.p.m. (30.5 m/min)

Retract 105 f.p.m. (32 m/min)

 Travel Speeds (Fwd and Rev)

2WD 0-19 mph (30.6 km/hr)

4WD 0-6.5 mph (10.5 km/hr)

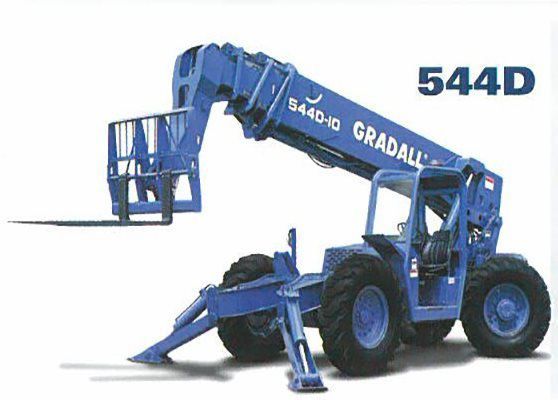

544D

Rated Capacity

At 24" (610mm) load center, 10,000 lb. (4,536 kg)

Maximum Lift Height

55' (16.8 m)

Frame Leveling

8 degrees

Lift Speed (boom retracted)

Empty 110 f.p.m. (34 m/min)

Loaded 100 f.p.m. (30.5 m/min)

Boom Speed

Extend 130 f.p.m. (40 m/min)

Retract 130 f.p.m. (40 m/min)

Travel Speeds (Fwd and Rev)

4WD & 2WD 6.5-19 mph (10.5-30.6 km/hr)



524D

Rated Capacity                                     Al 24 in. (610 mm) load center. 6.000 lb. (2.722 kg)

Maximum Lift Height                            245 ft. (75 m) or 32 ft (92

Frame Levering                                     8 degrees

Lift Speed (boom retracted)                  Empty, 121 (pm. (369 m/min); Loaded 793 tom. (242 mlmin)

Boom Speed                                          Extend 1075 tp.m. (328 nVmin) Retract 1312 (pm. (40 m/min)

Travel Speeds Forward and Reverse       4WD-2WD 7.5-16 mph (12-25.7 km/hr)

Operating Weight                                  With 48' (12 m) carriage and forks.

                                                             524D-25 - 153201b (6,955 kg)

                                                             5240-3S - 15,926 lb. (7230 kg)

Drawbar Pull                                           Loaded 12,850 lbs. (5828 kg)

EZ Grout

Grout Hog

Features:
  • Extended discharge arm saves several feet of boom extension on your forklift.

  • Decreased head height allows pouring up close to bar joist on interior walls.

  • Reduces the possibility of workers walking under the machine when elevated.

  • Makes grouting from the scaffold side of the wall easier.

  • Will handle up to 1/2 inch aggregate with virtually no plugging.

  • Removable auger and hopper tilt allows for 15 minute clean up.

  • Unique swivel base allows grouting from all angles while eliminating extra forklift moves.

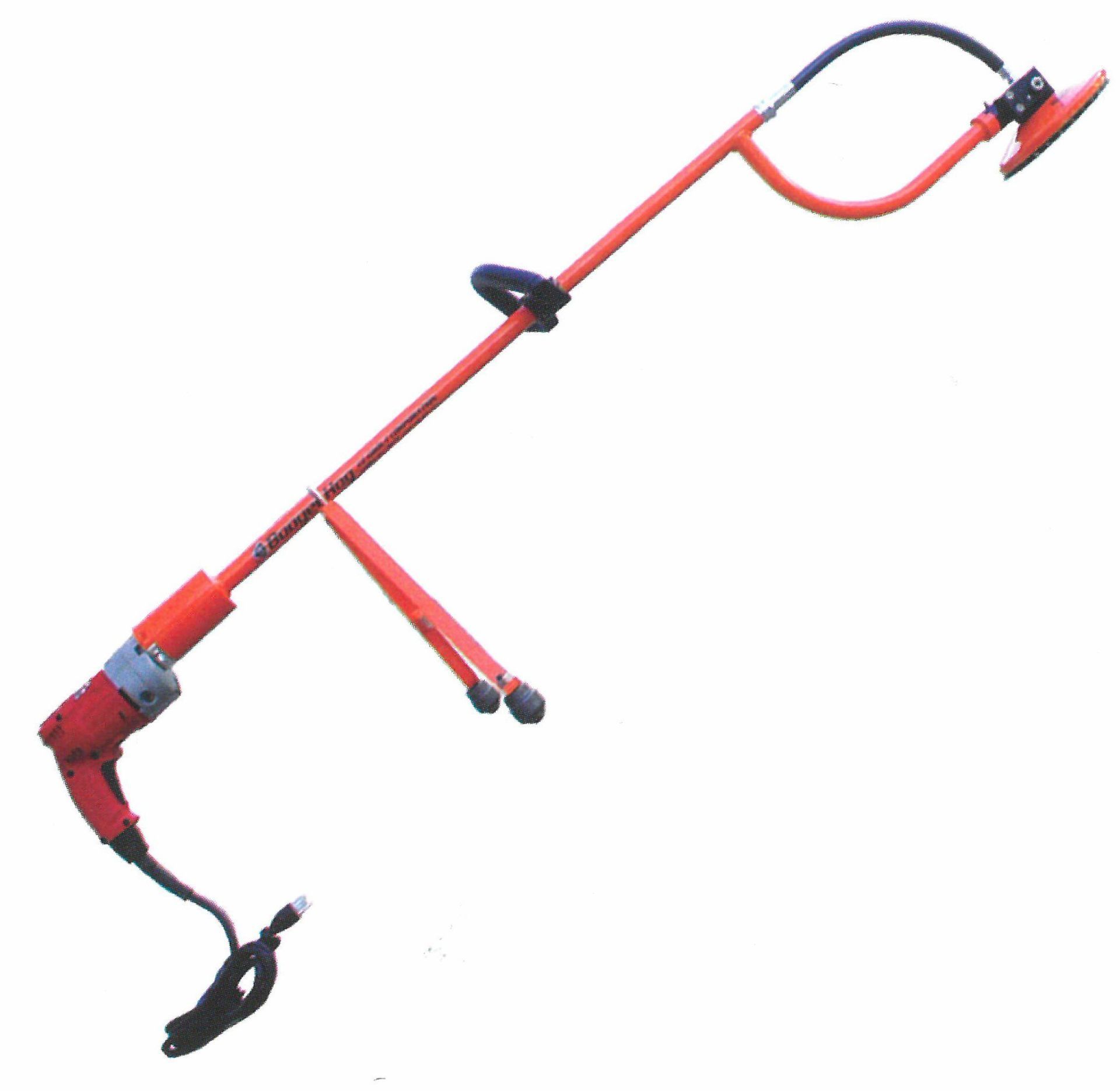

Booger Hog

Masonry Wall Scrubber
  • Power: 5.5A Milwaukee Drill (Although other drills will fit, we chose Milwaukee for dependability and durability)

  • Weight: 13.5 lbs w/Disc

  • Drive Shaft: 5/16" Diameter Steel

  • Disc Guard: Tight fitting 7 3/4" Aluminum guard for a 7" disc Allows better cleaning around corners and door frames.

  • Durability: Pivot on head with self-lubricating bronze bushings and a felt seal, swivel has a grease fitting for lubrication and rubber lip seal.

  • Service: (2) Grease fittings, Drill motor easily replaced if required. Motor brushes on drill accessible without disassembly. Revolutionize your jobsite today!

  • Make punch-out more efficient.

  • Keep more masons on the wall when one man and a Booger Hog TM can do the work of 4 to 5 men.

  • Wall Cleanup is Quicker and Easier!

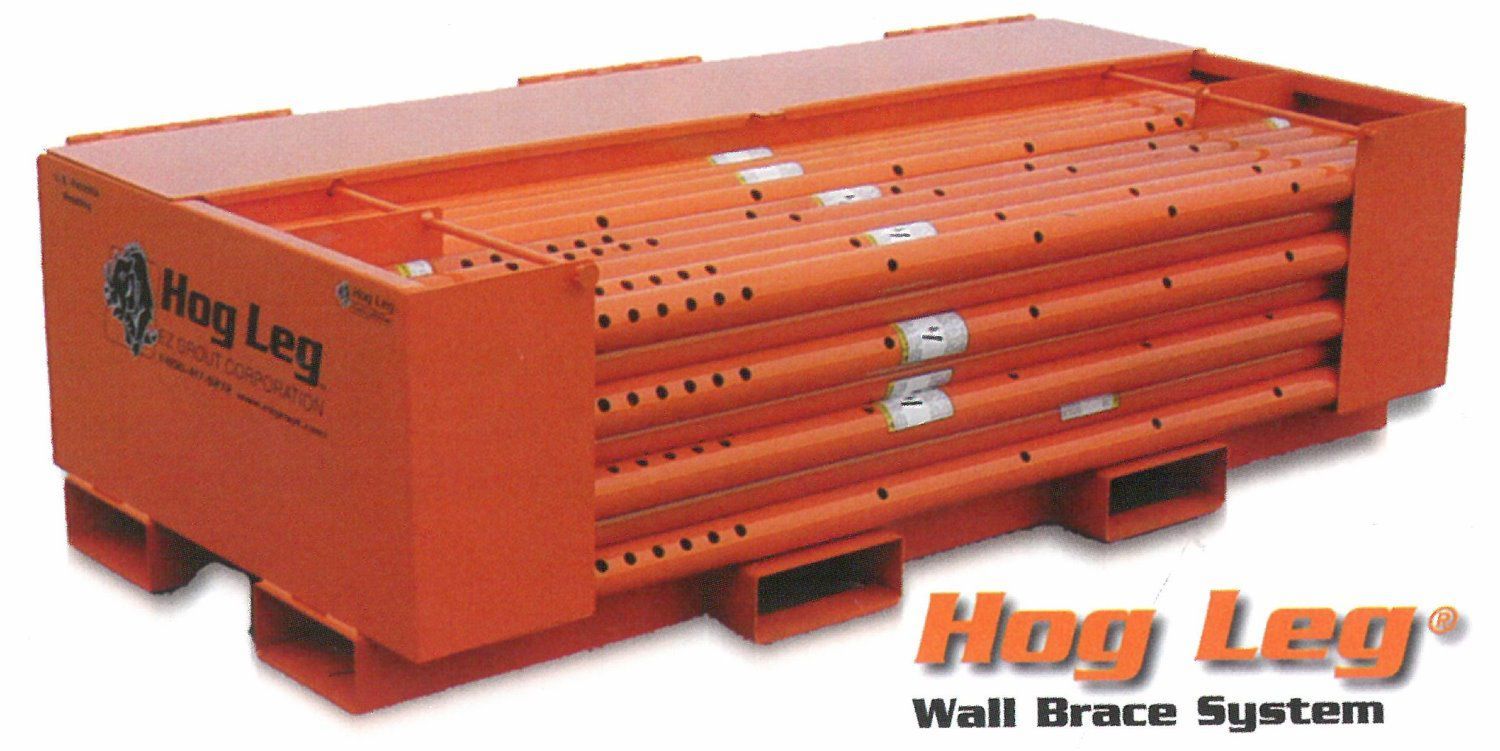

Hog Leg

HL400 Features:
  • Works on any type block

  • Fastens through the head joints (no cutting of block required or anchor bolts to purchase)

  • Adjusts to any height wall

  • One to two man assembly

  • Convenient lockable storage rack to store all materials (fits in 8 ft. bed) avoids theft

  • Lightweight, heaviest piece weighs only 38 lbs

  • Kicker extension can be used for extra stability

  • Makes your jobsite safer and more productive

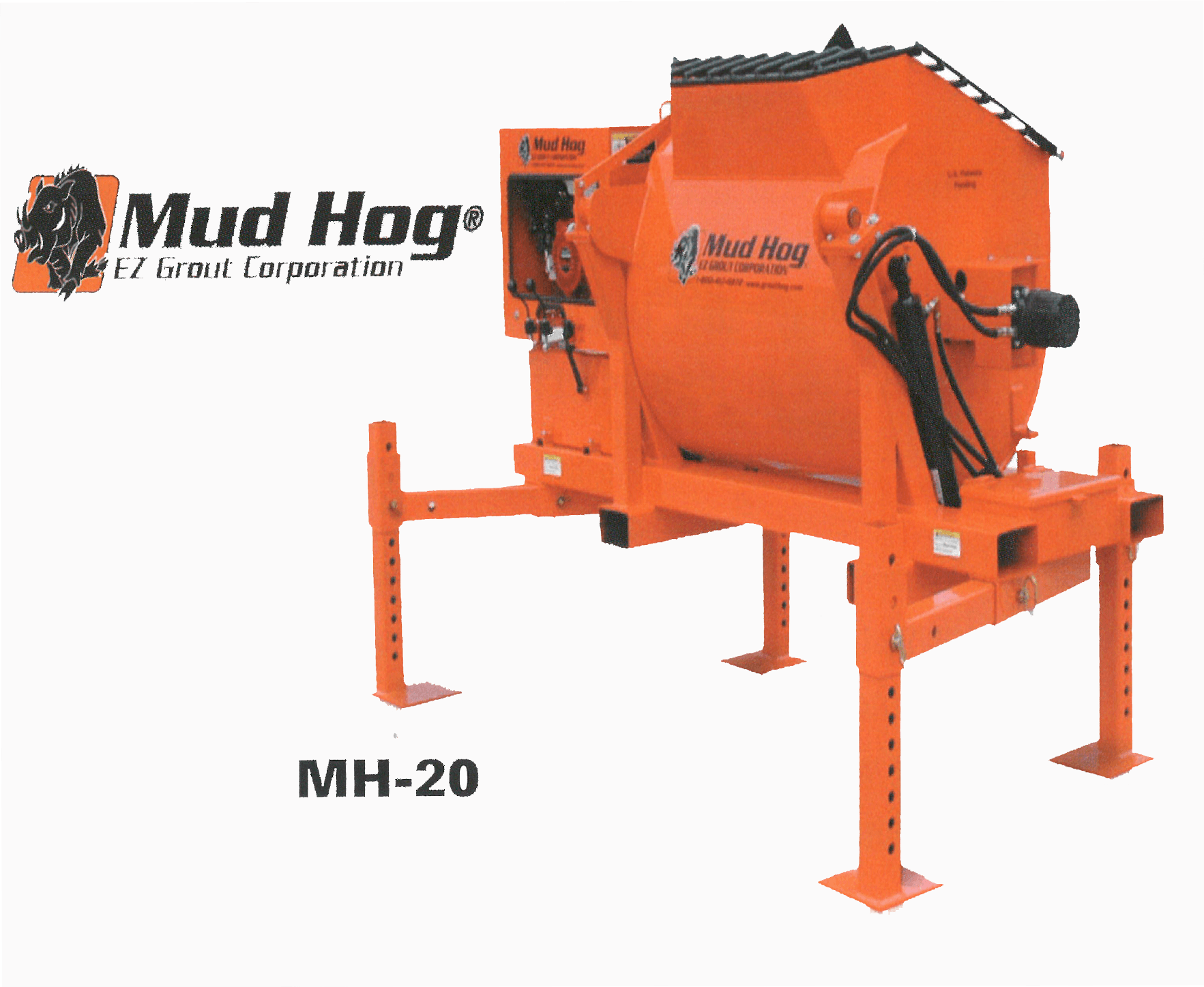

Mud Hog

MH-20 Features:
  • Large Capacity - Mix 6 to 7 bags in one batch

  • Adjustable Height - Labor loads below waist

  • No wheels to work around or maintain

  • Portability - Fork pockets accessible from all sides.

  • Empty weight 2160 lb.

  • Compact to fit in standard 8 ft. truck bed

  • Electric start, hydraulic drive, hydraulic dump

  • Reversible mixing paddles prevent clogging

  • Vertical paddles design cuts through material

  • Paddle angle prevents splashing out of drum

  • 6 mixing blades to decrease batch time

  • Masticated blades provide longer wear

  • Cleaning - labor stands upright to clean

  • Also ideal for stucco, smaller precast batches

  • Ergonomic design lessens labor fatigue and backache

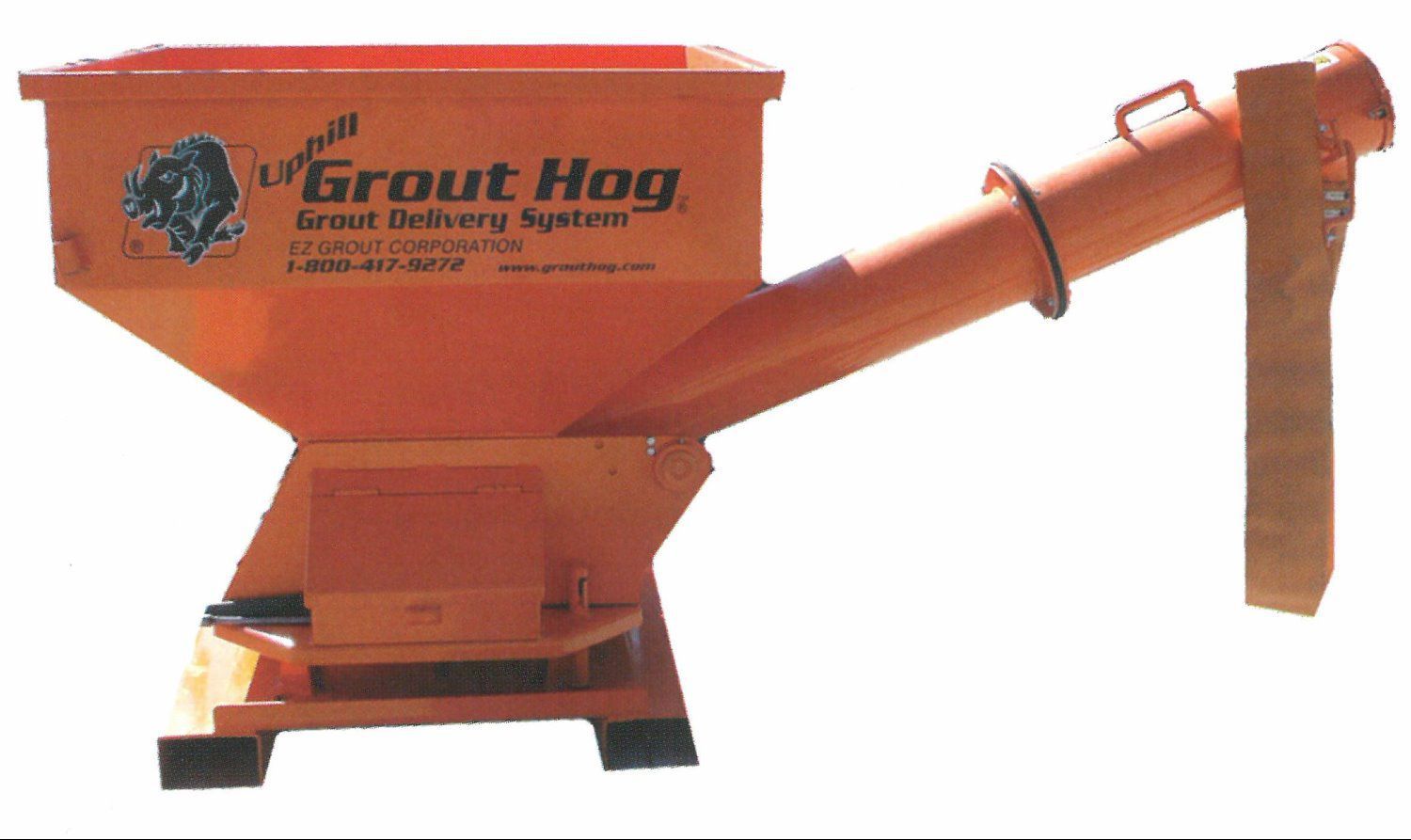

Grout Hog

Hydraulic Powered GH-75
  • Hooks to auxiliary hydraulics of forklift

  • Empty weight 840 lb.

  • Capacity: max. 3/4 cubic yard per load

  • Unique swivel base system allows workers to reach 17 feet of wall quickly without moving forklift

  • Dispensing hose: 7' reinforced, collapsible hose (4'hose also available)

  • Unloads 3/4 cubic yards in approx. 2 1/2 minutes if ran continuously

  • Other applications: Delivers sand, dry material, etc.



EZG7

Product Specifications

Model

EZG7

Capacity-ft3(L)

70

Capacity-Bags

11/210 2

Power Source*

Honda GX240

7.9HP(5.6kw)

Engine Starting

Manual Recoil

Drum Thickness

3/16"

Forklift Pockets

Standard

Discharge Height

21"

Load Height

48"

Dump Action

Manual

Drive System

Chain

Dimensions

73"Lx47"W x58"H

107" Lw/tongue

67" Hw/dump handle

Weight

820lbs (371.9kg)

EZG9

Product Specifications

Model

E2G9

Capacity-ft3(L)

9.0

Capacity-Bags

2 to 3

Power Source*

Honda GX240

7.9HP(5.6kw)

Engine Starting

Manual Recoil

Drum Thickness

3/16"

Forklift Pockets

Standard

Discharge Height

22"

Load Height

53"

Dump Action

Manual

Drive System

Chain

Dimensions

71"Lx47"W x67"H

104" Lw/tongue

73"Hw/dump handle

Weight

895lbs(406.0kg)

Kennison Plank

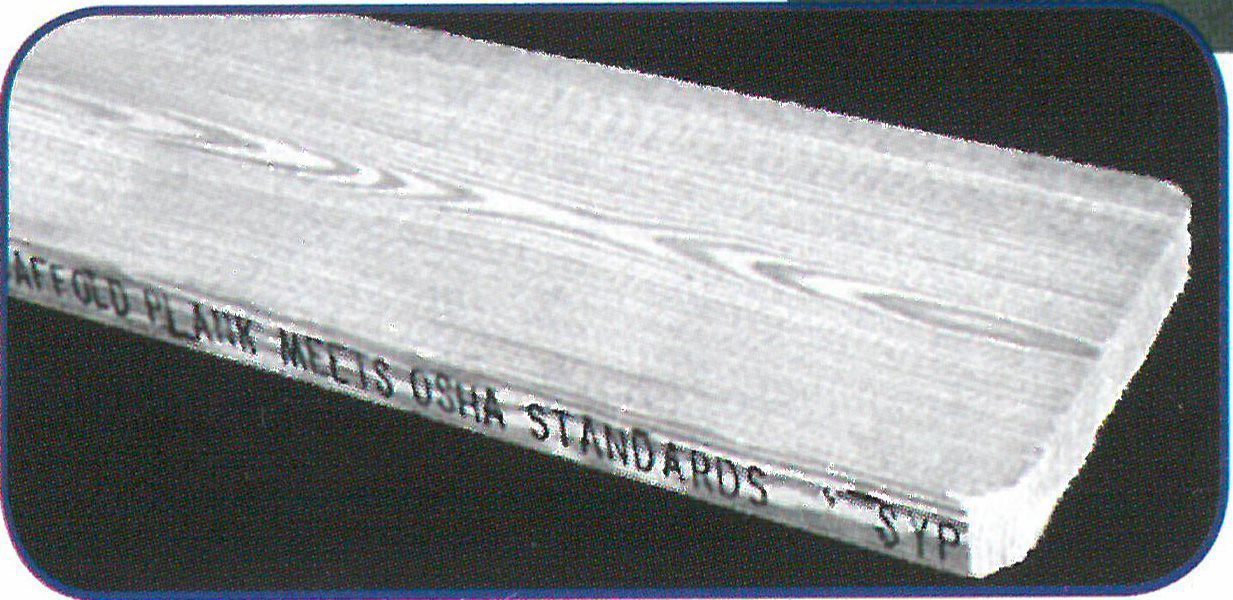

DENSE INDUSTRIAL 65

SOLID SAWN SCAFFOLD PLANK

DI65 is the original scaffold plank that set the standard for our industry to follow. For over 25 years the quality of this product has remained constant. DI65 is graded not only to meet OSHA/ANSI standards, but to exceed them. Our plank are without a doubt the safest, most dependable scaffold plank on the market today. Call our sales team for delivered prices to your area on partial or full loads.

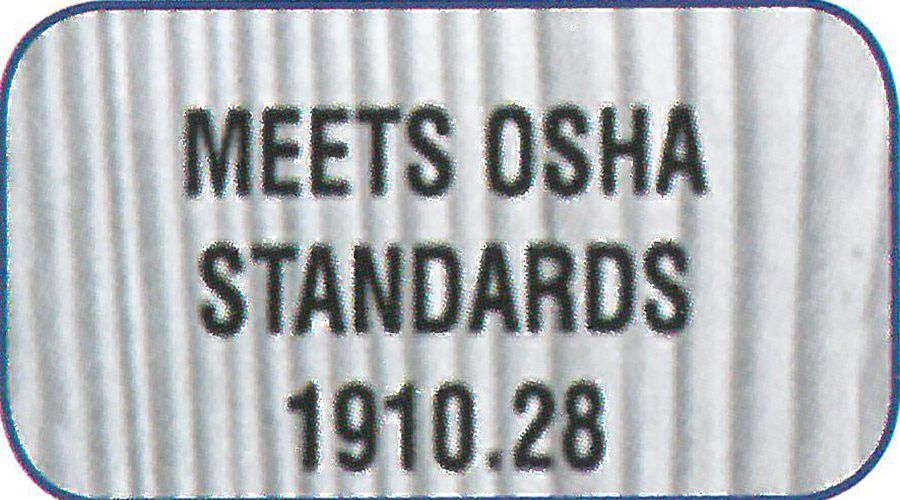

OSHA Stamp-

All our plank meet or exceed OSHA standards.

Services Available:

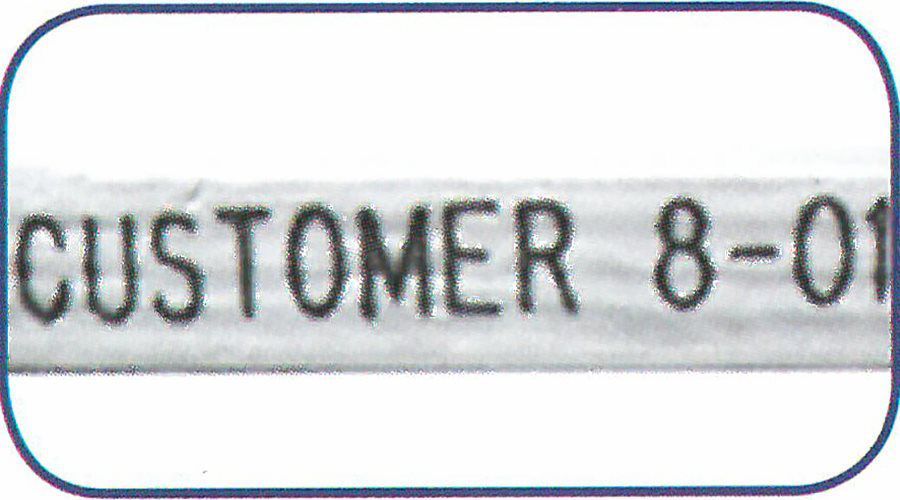

Continuous Branding

Plank are continuously branded with grade descrip-tion, customer name and "Meets OSHA standards".

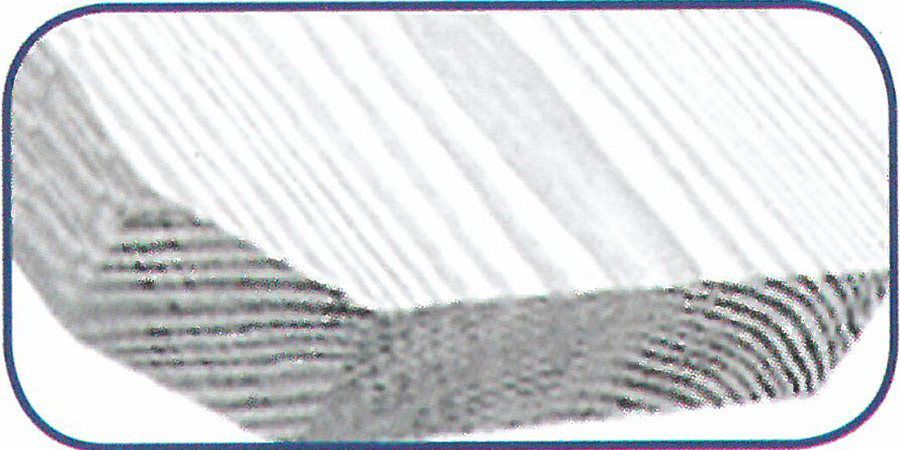

Clipped Corners

The corners are clipped to provide ease of handling and reduce end shearing.
